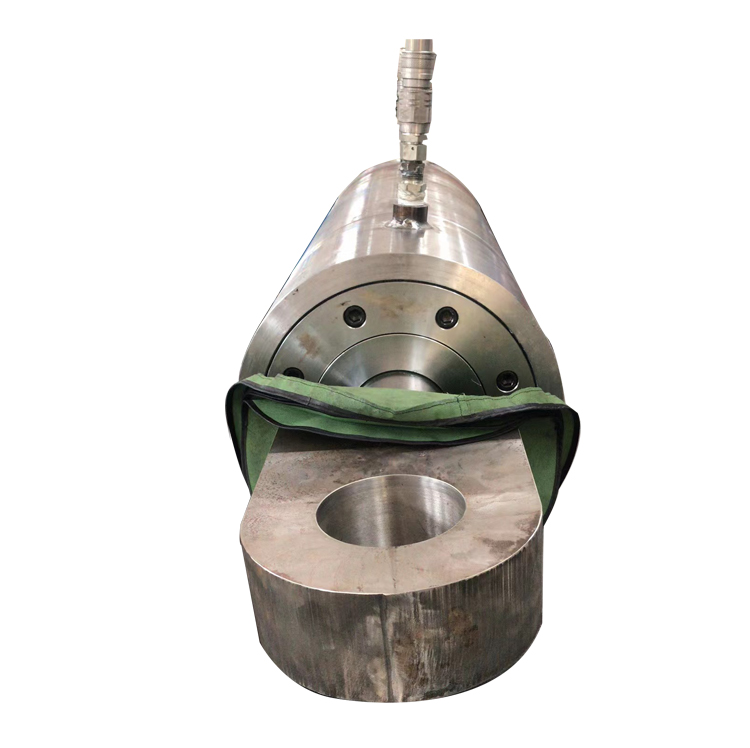

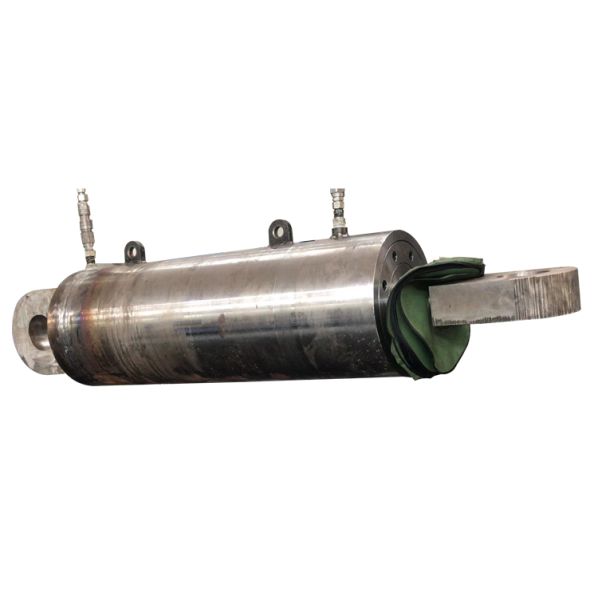

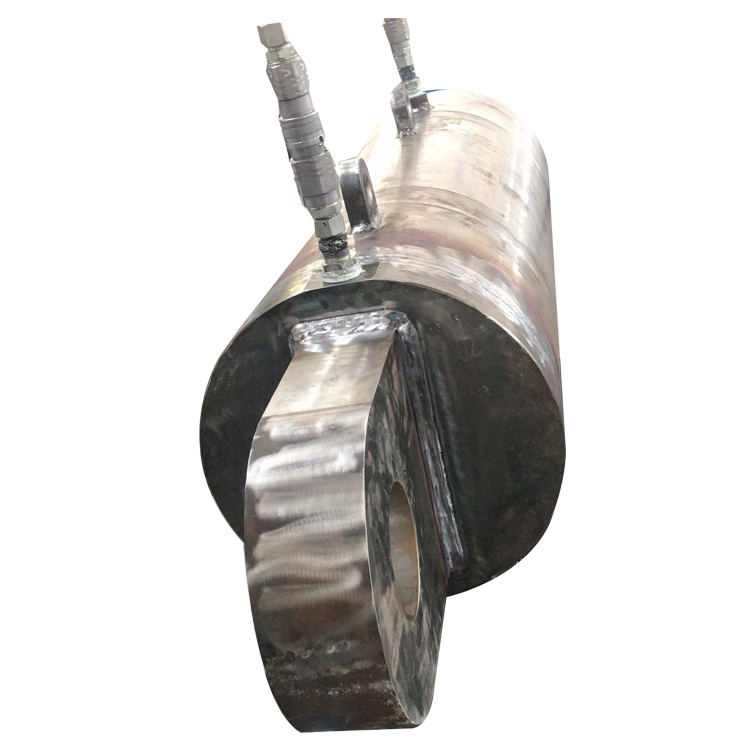

Custom 100t Hydraulic Cylinder 340mm Bore 125mm Rod

Customized 340 125-686 Hydraulic Cylinder 100t Metallurgical Hydraulic Cylinder Good Hydraulic Cylinders – We Make Sure Inside Parts
The tube follows GUOYUE CD250 style.
Tube steel can be 45#, 42CrMo, or 27SiMn.
Hole is ground to H8 and feels smooth, Ra under 0.4 μm.
Head, base, ears, and piston are only 45# steel.
We do not use cast iron or cast steel. Slow-Down Parts
You can pick fixed bumpers or floating bumpers so the rod slows down safe at any speed or load. Welds
We hit every heavy-load weld with ultrasound.
This takes away most of the stress and makes the weld last longer. Seals
We only use top seals from NOK (Japan), Trelleborg (Sweden), Merkel and GP (Germany).
We do not use local seals. Checks
Each cylinder is tested to GB/T15622-2005 and our own Q/GAKY014-2023.
You get a test sheet and a pass paper. Promise
We give one year cover from ship date.
If it breaks because of how we made it, we fix or swap it for free.
This cylinder is strong. It uses thick steel and hard rod. It does not bend. The seal keeps oil in, no leak. It has many tubes that slide out one by one. It lifts high but stays short Advantages: This customized 100 - ton hydraulic cylinder is the powerhouse you need for heavy - duty tasks. It’s designed to handle massive loads with ease, thanks to its robust construction and high - capacity design. The metallurgical - grade materials mean it can withstand the toughest conditions, like extreme heat and heavy wear. Plus, it’s fully customized to fit your specific needs, ensuring seamless integration into your system. Whether you’re lifting, pressing, or moving heavy materials, this cylinder delivers the strength and reliability you need to get the job done right. Application Scenarios: Think of a bustling steel mill or a busy foundry. This hydraulic cylinder is perfect for those demanding environments. It’s ideal for operating heavy - duty presses, forging machinery, or handling molten metal. Whether you’re lifting massive steel beams or operating a large - scale press, it provides the precise control and brute force required. It’s also great for maintaining heavy equipment, like lifting large molds for maintenance. If your job involves heavy lifting or moving in extreme conditions, this cylinder is your go - to solution.

Application	Engineering machinery, mine, shipping, metallurgy, water conservancy, offshore, agriculture, etc.
Seal	Parker, Merkel, NOK, Hallite,etc.
Paint	Red, Grey, Yellow, Black, etc.
Material	St52, CK45, 4140, Duplex2205, Stainless Steel 304/316, etc.
Certificate	ABS, Lloyds, SGS, etc.
Package	Bubble-wrap packing, then in wooden case.
Color	choose the color according to customer requirement
Core components	Bearing,Pressure vessel,Pump
Is it a standard part?	Nonstandard
Structure	Piston Type, Plunger Type, Telescopic Type,
Power	Hydraulic & Pneumatic
Brand	Guoyue
Sample	Available
