Good Hydraulic Cylinders – We Make Sure Inside Parts
The tube follows GUOYUE CD250 style.
Tube steel can be 45#, 42CrMo, or 27SiMn.
Hole is ground to H8 and feels smooth, Ra under 0.4 μm.
Head, base, ears, and piston are only 45# steel.
We do not use cast iron or cast steel. Slow-Down Parts
You can pick fixed bumpers or floating bumpers so the rod slows down safe at any speed or load. Welds
We hit every heavy-load weld with ultrasound.
This takes away most of the stress and makes the weld last longer. Seals
We only use top seals from NOK (Japan), Trelleborg (Sweden), Merkel and GP (Germany).
We do not use local seals. Checks
Each cylinder is tested to GB/T15622-2005 and our own Q/GAKY014-2023.
You get a test sheet and a pass paper. Promise
We give one year cover from ship date.
If it breaks because of how we made it, we fix or swap it for free.
This cylinder is strong. It uses thick steel and hard rod. It does not bend. The seal keeps oil in, no leak. It has many tubes that slide out one by one. It lifts high but stays short Advantages:

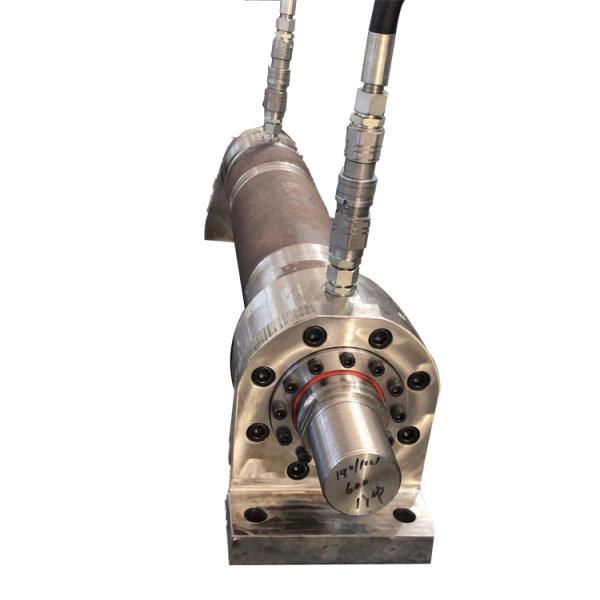

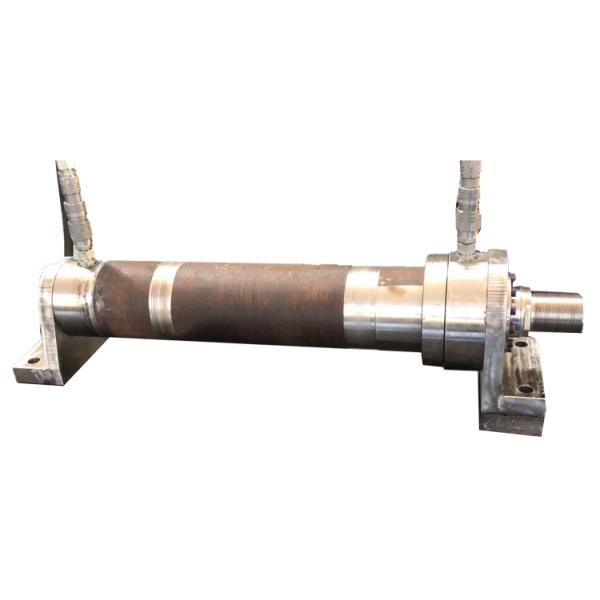

Compact tie-rod 140 mm bore, 100-600 mm stroke, factory-direct price, ±0.02 mm precision. Hardened chrome rod, NBR/FKM seals, 250 bar rated, 5 million cycles, zero-leak. CNC aluminum/steel, anodized or nickel-plated, colors/laser logos free. Quick 7-day sample, 25-day bulk, global shipping, RoHS/CE.
Applications :
Perfect for automotive press-fitting, robotic clamping, packaging heat-seal, machine-tool feeding, medical-bed lifting, solar-panel tracking, rail brake-lock, textile roll tension, food filler actuation, and aerospace test rigs demanding space-saving, high-force, customizable linear motion.
